石英晶体滤波器 Filter
>>
10M系列
|
|
|
|
|
|
|
◆ ELECTRICAL SPECIFICATIONS
|
|
10MHz系列
|
型号
|
NO of
Pole
|
通带宽度
|
阻带宽度
|
带内波动
|
插入损耗
|
终端阻抗
|
工作温度范围
|
|
[dB]
|
[KHz]
|
[dB]
|
[KHz]
|
[dB]
|
[dB]
|
Rt//Ct[Ω//pf]
|
[°C]
|
|
Nominal
frequency
10.695 MHz
10.700 MHz
10.710 MHz
|

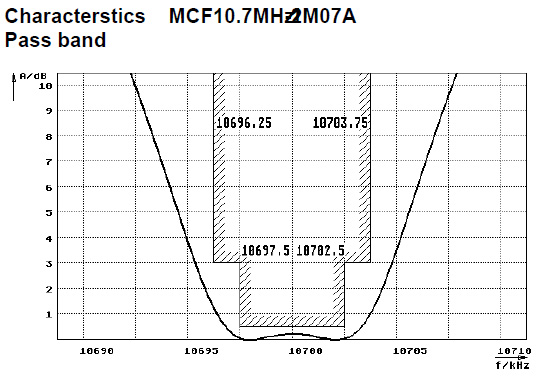

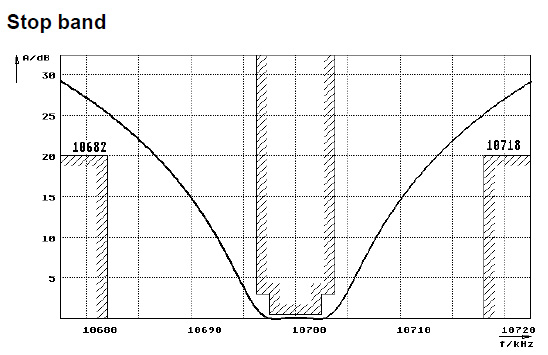

10M07A
|
2
|
3
|
±
3.75
|
20
|
±
18.00
|
0.5
|
2.0
|
1.5//5.0
|
-20 ~ +70
|
|
10M12A
|
2
|
3
|
± 6.00
|
18
|
±
20.00
|
0.5
|
2.0
|
2.5//2.5
|
-20 ~ +70
|
|
10M15A
|
2
|
3
|
±
7.50
|
18
|
±
25.00
|
0.5
|
2.0
|
3.0//2.0
|
-20 ~ +70
|
|
10M30A
|
2
|
3
|
± 15.00
|
18
|
±
50.00
|
0.5
|
2.0
|
5.0//0
|
-20 ~ +70
|
|
10MHz系列
|
型号
|
NO of
Pole
|
通带宽度
|
阻带宽度
|
带内波动
|
插入损耗
|
终端阻抗
|
工作温度范围
|
|
[dB]
|
[KHz]
|
[dB]
|
[KHz]
|
[dB]
|
[dB]
|
Rt//Ct//Cc
[Ω//pF//pF]
|
[°C]
|
|
Nominal
frequency
10.695 MHz
10.700 MHz
10.710 MHz
|

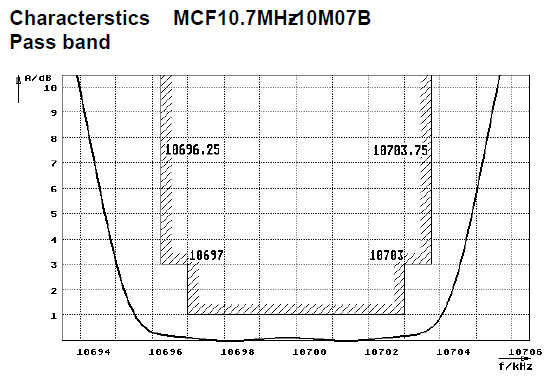

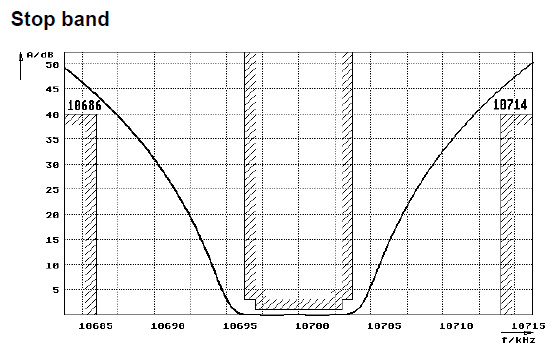

10M07B
|
4
|
3
|
± 3.75
|
40
|
±
14.00
|
1.0
|
2.5
|
1.5//6.0
|
-20 ~ +70
|
|
10M12B
|
4
|
3
|
±
6.00
|
40
|
±
20.00
|
1.0
|
2.5
|
1.5//2.0
|
-20 ~ +70
|
|
10M15B
|
4
|
3
|
±
7.50
|
40
|
±
25.00
|
1.0
|
2.5
|
3.0//2.0
|
-20 ~ +70
|
|
10M30B
|
4
|
3
|
±
15.00
|
40
|
±
50.00
|
1.0
|
2.5
|
5.5//-1
|
-20 ~ +70
|
|
|
|
|
|
|
|
|
|
|
以开发、制造、技术支持;为使用者订制不同规格、技术要求的石英晶体滤波器元件
|
 |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
